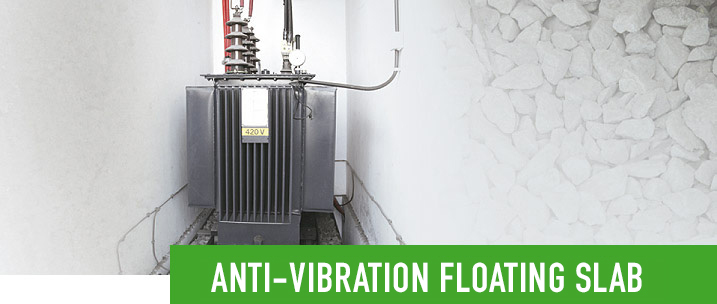

Anti-vibration floating slab
The design of this anti-vibration floating slab offers an effective and durable solution for the isolation of vibration transmission from heavy bodies, such as transformers, in its support.
DESCRIPTION
The operation of the slab is based on the incorporation of Vibraflot elements (Vibrachoc brand), whose behaviour guarantees anti-vibration isolation from a low resonance frequency (see graphs below).

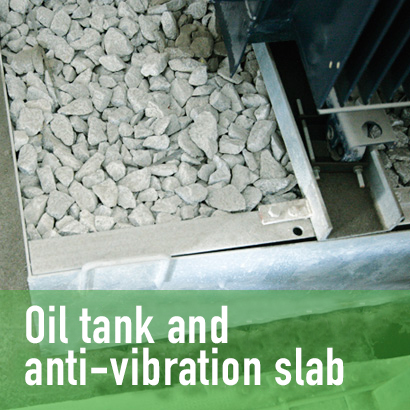

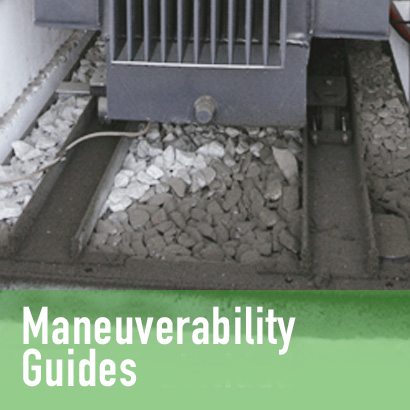

The assembly also consists of an oil collection tank and a structure equipped with guides for the manoeuvrability, and support, of the transformer (see graphs below).
Although the original design of this set is intended for use in transformers, the operation and dimensioning of the floating slab is adaptable to the needs of any other type of machinery or device that requires anti-vibration isolation.
Advantages of the set formed by anti-vibration slab and oil collection tank from Talleres Ureña SL
- Anti-vibration quality assured and certified by APPLUS.
- Speed in the installation of the set, as it is a kit made up of elements that are easy to position and assemble. This greatly facilitates and speeds up the implementation of the site compared to the conventional work complex.
- Equally quick and practical disassembly system in the event of a transformer failure. This makes it highly optimal compared to the conventional construction set, since not only is extraction and disassembly simple and fast, but also its replacement. This point is considered of enormous valuet, as it saves many hours of downtime of the transformer in the event of a breakdown, also taking into account the economic savings that this implies.
- High resistance to exposure to vibrations of the materials used that make up the assembly.
- This system entails a plus of safety in occupational risks at the execution level, given the limited number of tasks to be carried out on site, and the brevity of these.
Assemblage performance test certified by:
Patented Product No. 200801466.
